CONN RCPT 76POS 0.1 GOLD PCB
CONN RCPT HSG FMALE 13POS PNL MT

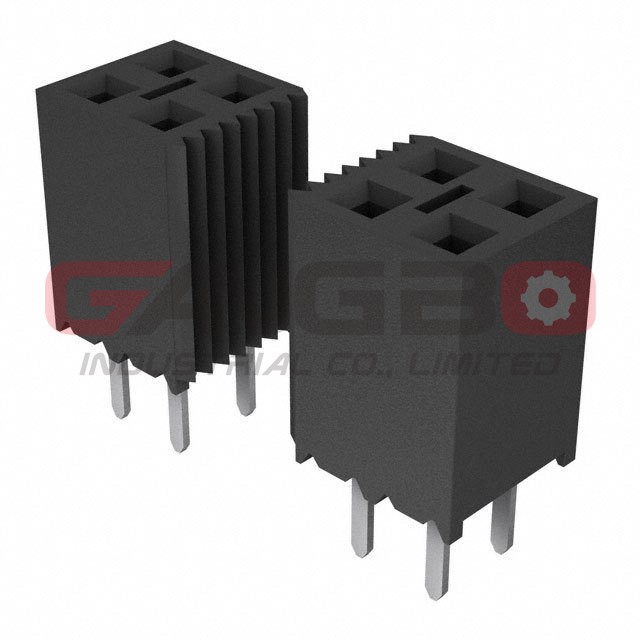

图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | Tiger Claw™ BCS |
| 包裹: | Tube |
| 零件状态: | Active |
| 连接器类型: | Receptacle |
| 联系方式: | Female Socket |
| 风格: | Board to Board |
| 职位数: | 76 |
| 加载的位置数: | 75 |
| 俯仰交配: | 0.100" (2.54mm) |
| 行数: | 2 |
| 行距 - 交配: | 0.100" (2.54mm) |
| 安装类型: | Through Hole |
| 终止: | Solder |
| 紧固类型: | Push-Pull |
| 接触完成 - 交配: | Gold |
| 接触表面厚度 - 配合: | 10.0µin (0.25µm) |
| 绝缘颜色: | Black |
| 绝缘高度: | 0.290" (7.37mm) |
| 接触长度 - 后: | 0.122" (3.10mm) |
| 工作温度: | -55°C ~ 125°C |
| 材料可燃性等级: | UL94 V-0 |
| 接触完成 - 发布: | Tin |
| 配对堆叠高度: | - |
| 入口保护: | - |
| 特征: | - |
| 额定电流（安培）: | 4.6A per Contact |
| 额定电压: | 475VAC |
