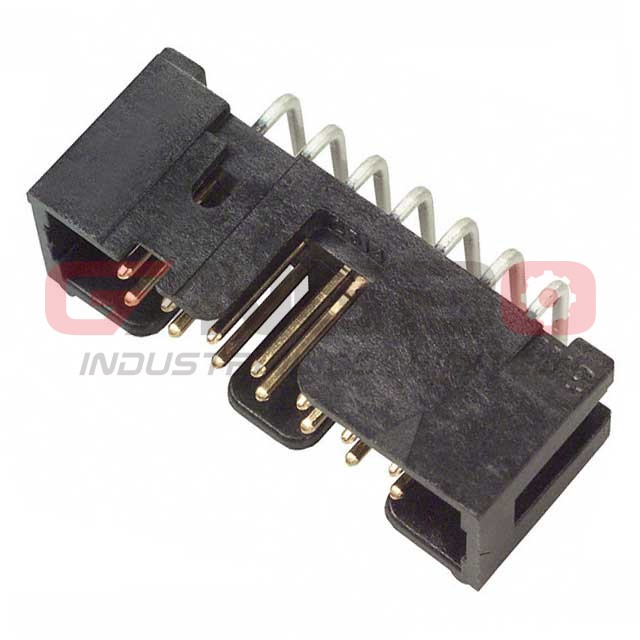

CONN HEADER R/A 14POS 2.54MM
WS10 CHINESE (TRADITIONAL) FRONT
图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | 2500 |
| 包裹: | Bulk |
| 零件状态: | Obsolete |
| 连接器类型: | Header |
| 联系方式: | Male Pin |
| 俯仰交配: | 0.100" (2.54mm) |
| 职位数: | 14 |
| 行数: | 2 |
| 行距 - 交配: | 0.100" (2.54mm) |
| 加载的位置数: | All |
| 风格: | Board to Board or Cable |
| 笼罩: | Shrouded - 4 Wall |
| 安装类型: | Through Hole, Right Angle |
| 终止: | Solder |
| 紧固类型: | Push-Pull |
| 接触长度 - 交配: | 0.243" (6.17mm) |
| 接触长度 - 后: | 0.155" (3.94mm) |
| 总接触长度: | - |
| 绝缘高度: | 0.338" (8.59mm) |
| 接触形状: | Square |
| 接触完成 - 交配: | Gold |
| 接触表面厚度 - 配合: | 30.0µin (0.76µm) |
| 接触完成 - 发布: | Tin-Lead |
| 接触材料: | Copper Alloy |
| 绝缘材料: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| 特征: | Keying Slot |
| 工作温度: | -55°C ~ 105°C |
| 入口保护: | - |
| 材料可燃性等级: | UL94 V-0 |
| 绝缘颜色: | Black |
| 额定电流（安培）: | 1.75A |
| 额定电压: | - |
