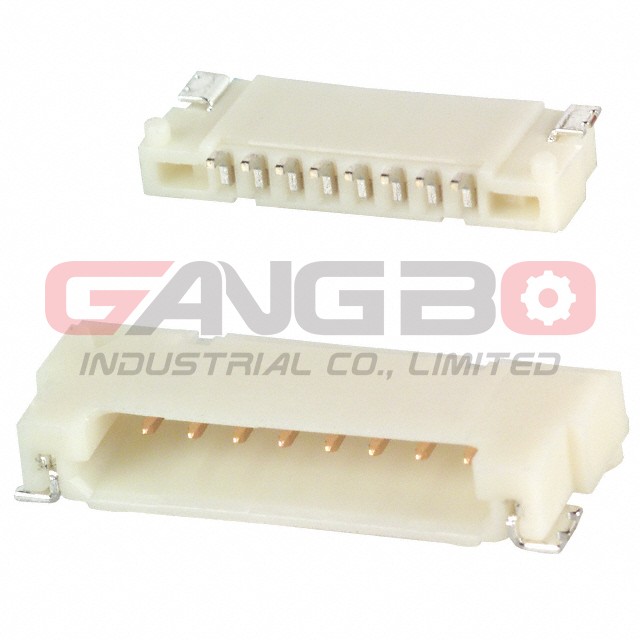

图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | DF14 |
| 包裹: | Tube |
| 零件状态: | Obsolete |
| 连接器类型: | Header |
| 联系方式: | Male Pin |
| 俯仰交配: | 0.049" (1.25mm) |
| 职位数: | 8 |
| 行数: | 1 |
| 行距 - 交配: | - |
| 加载的位置数: | All |
| 风格: | Board to Cable/Wire |
| 笼罩: | Shrouded - 4 Wall |
| 安装类型: | Surface Mount, Right Angle |
| 终止: | Solder |
| 紧固类型: | Push-Pull |
| 接触长度 - 交配: | 0.086" (2.20mm) |
| 接触长度 - 后: | - |
| 总接触长度: | - |
| 绝缘高度: | 0.098" (2.50mm) |
| 接触形状: | Square |
| 接触完成 - 交配: | Gold |
| 接触表面厚度 - 配合: | 3.90µin (0.099µm) |
| 接触完成 - 发布: | Tin-Copper |
| 接触材料: | Brass |
| 绝缘材料: | Polyamide (PA), Nylon |
| 特征: | Board Guide, Solder Retention |
| 工作温度: | -35°C ~ 85°C |
| 入口保护: | - |
| 材料可燃性等级: | UL94 V-0 |
| 绝缘颜色: | Beige |
| 额定电流（安培）: | 1A |
| 额定电压: | 150V |
