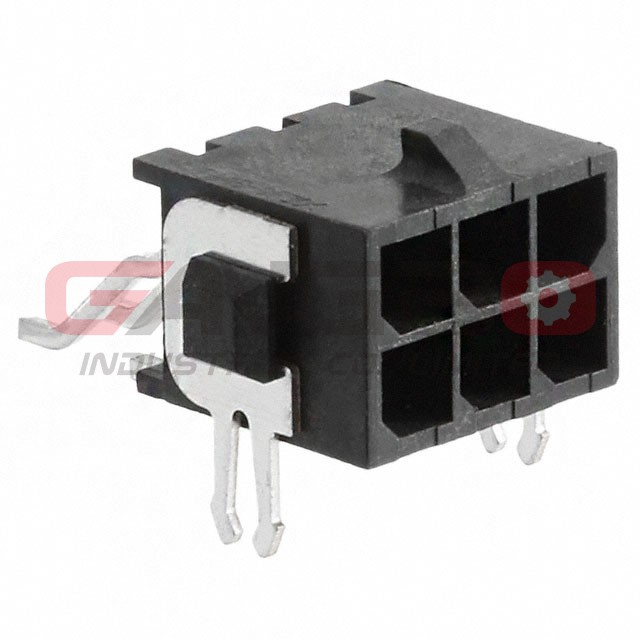

CONN HEADER SMD R/A 6POS 3MM
CONN HEADER SMD R/A 16POS 2MM
CONN BARRIER STRIP 8CIRC 0.374"
CONN RCPT MALE 2POS GOLD CRIMP
图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | Micro MATE-N-LOK |
| 包裹: | Bulk |
| 零件状态: | Obsolete |
| 连接器类型: | Header |
| 联系方式: | Male Pin |
| 俯仰交配: | 0.118" (3.00mm) |
| 职位数: | 6 |
| 行数: | 2 |
| 行距 - 交配: | 0.118" (3.00mm) |
| 加载的位置数: | All |
| 风格: | Board to Cable/Wire |
| 笼罩: | Shrouded - 4 Wall |
| 安装类型: | Surface Mount, Right Angle |
| 终止: | Solder |
| 紧固类型: | Locking Ramp |
| 接触长度 - 交配: | - |
| 接触长度 - 后: | - |
| 总接触长度: | - |
| 绝缘高度: | 0.290" (7.37mm) |
| 接触形状: | Square |
| 接触完成 - 交配: | Tin-Lead |
| 接触表面厚度 - 配合: | 100.0µin (2.54µm) |
| 接触完成 - 发布: | Tin-Lead |
| 接触材料: | Brass |
| 绝缘材料: | Polyamide (PA), Nylon |
| 特征: | Board Lock |
| 工作温度: | -40°C ~ 105°C |
| 入口保护: | - |
| 材料可燃性等级: | UL94 V-0 |
| 绝缘颜色: | Black |
| 额定电流（安培）: | Varies by Wire Gauge |
| 额定电压: | 250V |
