CONN HEADER SMD R/A 20POS 1.27MM
CONN HDR .050" 22POS
IC SUPERVISOR 1 CHAN USPQ-4B05
8T 7C 7#20 PIN RECP

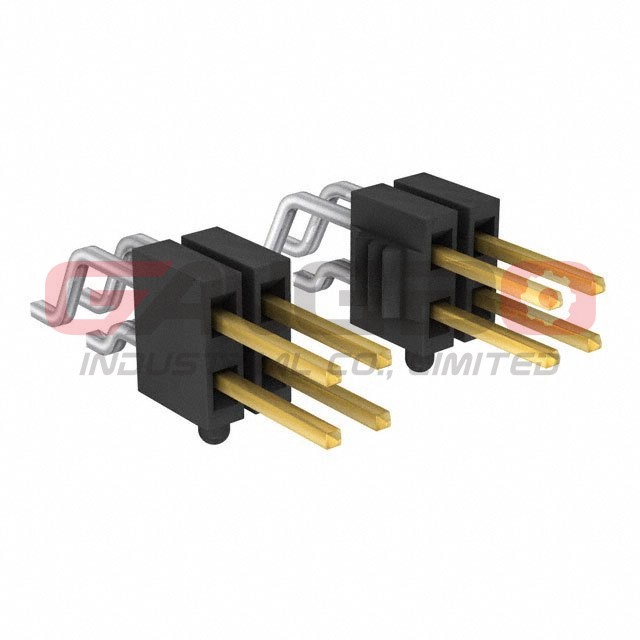

图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | FTSH |
| 包裹: | Tape & Reel (TR) |
| 零件状态: | Active |
| 连接器类型: | Header, Cuttable |
| 联系方式: | Male Pin |
| 俯仰交配: | 0.050" (1.27mm) |
| 职位数: | 20 |
| 行数: | 2 |
| 行距 - 交配: | 0.050" (1.27mm) |
| 加载的位置数: | All |
| 风格: | Board to Board or Cable |
| 笼罩: | Unshrouded |
| 安装类型: | Surface Mount, Right Angle |
| 终止: | Solder |
| 紧固类型: | Push-Pull |
| 接触长度 - 交配: | 0.120" (3.05mm) |
| 接触长度 - 后: | - |
| 总接触长度: | - |
| 绝缘高度: | 0.135" (3.43mm) |
| 接触形状: | Square |
| 接触完成 - 交配: | Gold |
| 接触表面厚度 - 配合: | 10.0µin (0.25µm) |
| 接触完成 - 发布: | Tin |
| 接触材料: | Phosphor Bronze |
| 绝缘材料: | Liquid Crystal Polymer (LCP) |
| 特征: | Board Guide, Pick and Place |
| 工作温度: | -55°C ~ 125°C |
| 入口保护: | - |
| 材料可燃性等级: | UL94 V-0 |
| 绝缘颜色: | Black |
| 额定电流（安培）: | 3.4A per Contact |
| 额定电压: | - |
