FUSE BOARD MOUNT 1.5A 125VAC/VDC
CONN HEADER VERT 82POS 1.27MM
CONN RCPT MALE 53POS GOLD CRIMP
COMBO 7W2 M CRIMP G ZINC

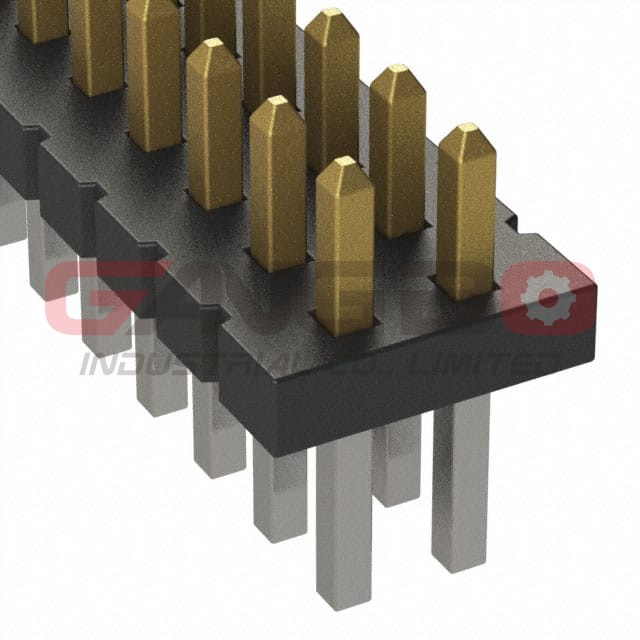

图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | FTS |
| 包裹: | Tube |
| 零件状态: | Active |
| 连接器类型: | Header, Cuttable |
| 联系方式: | Male Pin |
| 俯仰交配: | 0.050" (1.27mm) |
| 职位数: | 82 |
| 行数: | 2 |
| 行距 - 交配: | 0.050" (1.27mm) |
| 加载的位置数: | All |
| 风格: | Board to Board or Cable |
| 笼罩: | Unshrouded |
| 安装类型: | Through Hole |
| 终止: | Solder |
| 紧固类型: | Push-Pull |
| 接触长度 - 交配: | 0.075" (1.90mm) |
| 接触长度 - 后: | 0.090" (2.29mm) |
| 总接触长度: | 0.199" (5.05mm) |
| 绝缘高度: | 0.034" (0.86mm) |
| 接触形状: | Square |
| 接触完成 - 交配: | Gold |
| 接触表面厚度 - 配合: | 30.0µin (0.76µm) |
| 接触完成 - 发布: | Tin |
| 接触材料: | Phosphor Bronze |
| 绝缘材料: | Liquid Crystal Polymer (LCP) |
| 特征: | - |
| 工作温度: | -55°C ~ 125°C |
| 入口保护: | - |
| 材料可燃性等级: | UL94 V-0 |
| 绝缘颜色: | Black |
| 额定电流（安培）: | 3.4A per Contact |
| 额定电压: | - |
